Heavy-Duty Gabion Wire Mesh Machine - Fast Production & Long Service Life

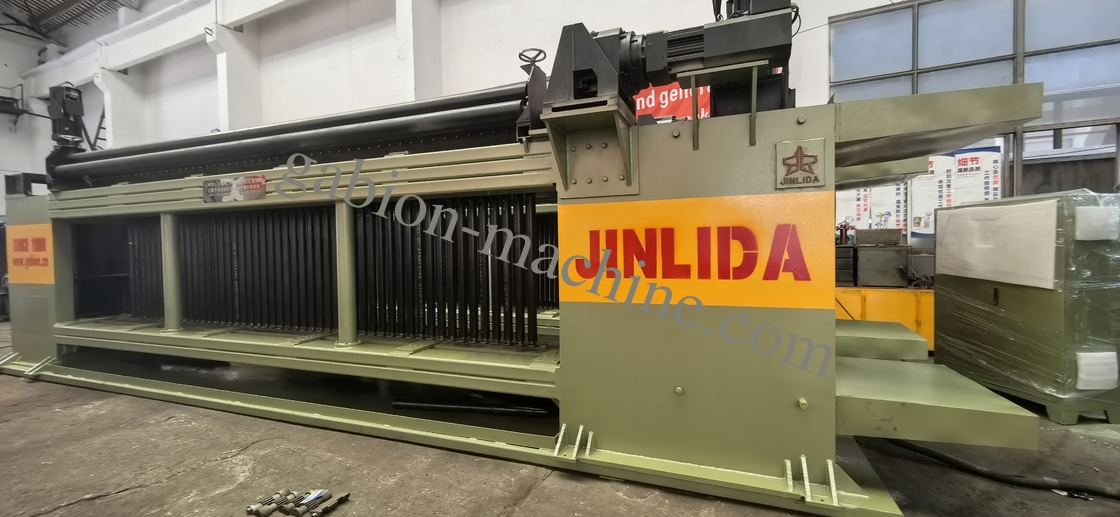

The Jinlida CNC Gabion Mesh Machine represents the pinnacle of gabion manufacturing technology—combining intelligent automation, high structural integrity, and flexible output to meet rigorous engineering demands.
Key Technical Highlights
Integrated Automation
This fully automated system consolidates wire pay-off, mesh weaving, edge wrapping, cutting, flattening, and bundling into one continuous workflow—comparable to advanced production lines known for seamless, end-to-end operation.
Exceptional Output Capacity
High-producing systems deliver up to 200 m²/hour, with theoretical outputs ranging from 400 to 700 m²/hour in rugged configurations—drastically boosting productivity.
Wide Mesh Capability
Supports:
Mesh apertures: 60×80 mm, 80×100 mm, 100×120 mm, 120×150 mm
Max weaving widths from 2.0 m up to 5.0 m, even extending to 5.3 m in ultra-wide models—reducing panel joins and reinforcing installation integrity.
1.Wide Wire Compatibility
Handles galvanized and PVC-coated wires with diameters ranging from 2 mm to 4 mm (even up to 4.2 mm)—ideal for high-strength, long-lasting construction requirements.
2.Sophisticated Control & Safety Systems
Equipped with PLC or CNC touchscreen control, optional features include infrared safety protection, automatic stop on wire break, automatic lubrication, real-time diagnostics, and IoT integration for remote monitoring and alerts.
3.Robust Build & Dimensional Stability
Constructed from reinforced carbon steel, with machine weights ranging from 15 t to 18 t—ensuring stable, high-volume operation and resistance to deformation.
4.High Precision & Flexibility
Advanced models support one-click switching between single-twist, double-twist, and quintuple-twist configurations, with micron-level accuracy for customized structural strength.
Typical Technical Specifications
| Feature |
Specification |
| Mesh Size |
60×80 mm, 80×100 mm, 100×120 mm, 120×150 mm |
| Max Width |
2.0 m to 5.3 m |
| Wire Diameter |
2 – 4 mm (galvanized / PVC-coated) |
| Output |
~200 m²/h; up to 700 m²/h in heavy-duty setups |
| Motor Power |
22 kW (standard), up to 30 kW in extended models |
| Weight |
12 – 18 t |
| Control Systems |
PLC/CNC touch, auto-stop, lubrication, IoT ready |
Why Jinlida Stands Out
Unmatched Production Efficiency
Few machines on the market match Jinlida’s output—capable of delivering hundreds of square meters an hour with consistent quality.
Precision Meets Durability
Combining high build strength with CNC-controlled accuracy ensures gabion mesh meets exacting engineering standards.
Flexible & Future-Ready
With smart switching of twist modes, customizable mesh specs, and remote monitoring, Jinlida is adaptable to evolving project requirements.
Global Provenance
Leveraging Jinlida’s longstanding international presence—including certifications like CE, ISO, SGS—this machine is trusted across diverse infrastructure and ecological applications.
Applications
Ideal for:
1.Civil infrastructure: slope stabilization, retaining walls, hydraulic control
2.Environmental projects: erosion control, ecological restoration
3.Landscaping: architectural gabion features, erosion-resistant green walls
4.Industrial: fencing, cage-like containment, flow control structures
Set of gabion mesh production line including
Main machine
GLD-2 Wire Tensioning Device
Netting roll winding machine
GLD-2 Spring Coiling Machine(PLC Control)
WARRANTY:
1 year on non-wearing parts.
The warranty covers the replacement of defective manufacturing materials and on-site assistance, if necessary.
